910002262 Angle Sensor
| Attribute |
Information |
| Part Number |
910002262 |
| Description |
Angle Sensor / WMK9.3 Angle Sensor |
| Application |
Sulzer Projectile Looms |
| Compatible Models |
P7100, PU, TW11 |
| Category |
Loom spare parts / Textile machinery accessories |
- PU P7100 Wmk9.3
- High Quality Projectile Sulzer Machine Loom Spare Part Accessories
| SULZER PROJECTILE LOOM PARTS |
| Projectile Loom Type |
Suppling Parts List |
| PS |
PROJECTILE,PROJ GRIPPER |
| TW11 |
DRIVE MECHANISM |
| PU (911) |
PICKING MECHANISM |
| P7100 |
PROJECTILE LIFTER,OPENER,GUIDE RAIL |
| P7150/P7250 |
PROJECTILE GUIDE INSERT,SCISSOR |
| P7200 ( 975) |
PROJECTILE FEEDER,SELECTOR |
| P7300 |
RECEIVING MECHANISM,PROJ RETURNER |
| G6200 (965) |
PROJECTILE BRAKE MECHANISM |
| |
TUCKING UNIT,TEMPLE |
| |
WEFT SUPPLY |
| |
LETT-OFF AND DRIVE |
| |
TAKE-UP DRIVE |
| |
CAMS |
| |
HEALD,CAM BOXES |
| |
DOBBY,SENSOR PARTS |
| |
TOOLS |
To perform the regular maintenance of Projectile weaving machine parts (spare parts of shuttle less looms Sulzer PU,TW11,P7100,P7150,P7200,P7300 looms)will use the following items:
Projectile , Projectile grippers ,Body, Guide tooth, Picking shoes, ,Picking levers,Brake lining,Projectile feeders,Projectile returners, Weft end gripper, Scissor, Guide rail,Convenyor Chain,SENSOR ,Projectile Lifter,Brake Ring,Cam
In Textile Context
In Sulzer projectile weaving machines, the angle sensor serves as the "timing master"—it tracks the exact angular position of the main drive shaft (typically 0–360° or 0–720° for two rotations per pick). This allows the loom controller to fire projectiles at precise moments when the shed is open and synchronize auxiliary motions like warp let-off and take-up.
How It Works
At its core, an angle sensor detects the angular position of a rotating element. As the shaft rotates, the sensor's internal mechanism changes a physical property—resistance, magnetic field, light interruption, or capacitance—which is then converted into a measurable electrical output (analog voltage, current, or digital signals like SPI, I2C, or SSI).
|
|

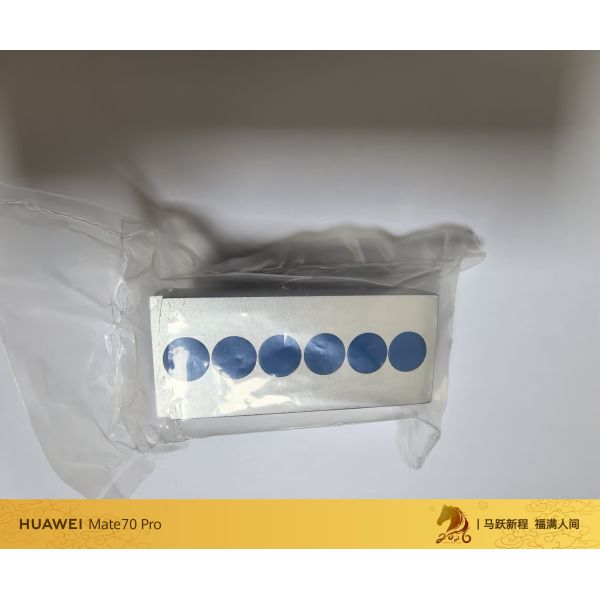

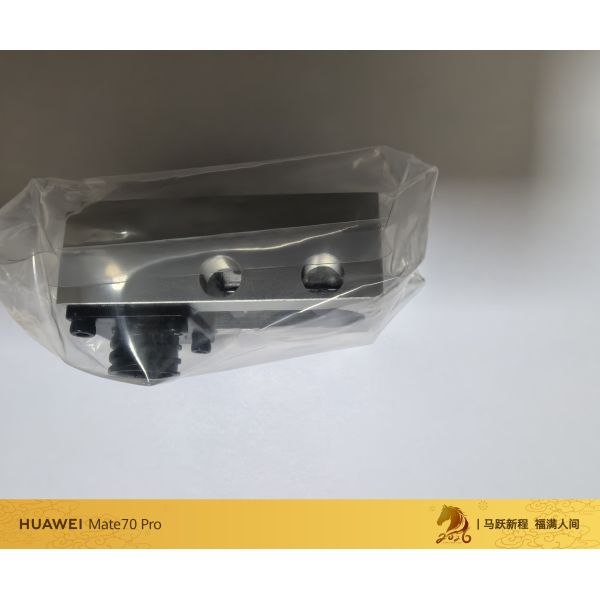

910002262 Is An Angle Sensor (Also As WMK9.3 Angle Sensor) Used For Sulzer Projectile Looms. Images
|
